EOM11    ←

• Technical Specifications
• Pdf
• Ask About Products

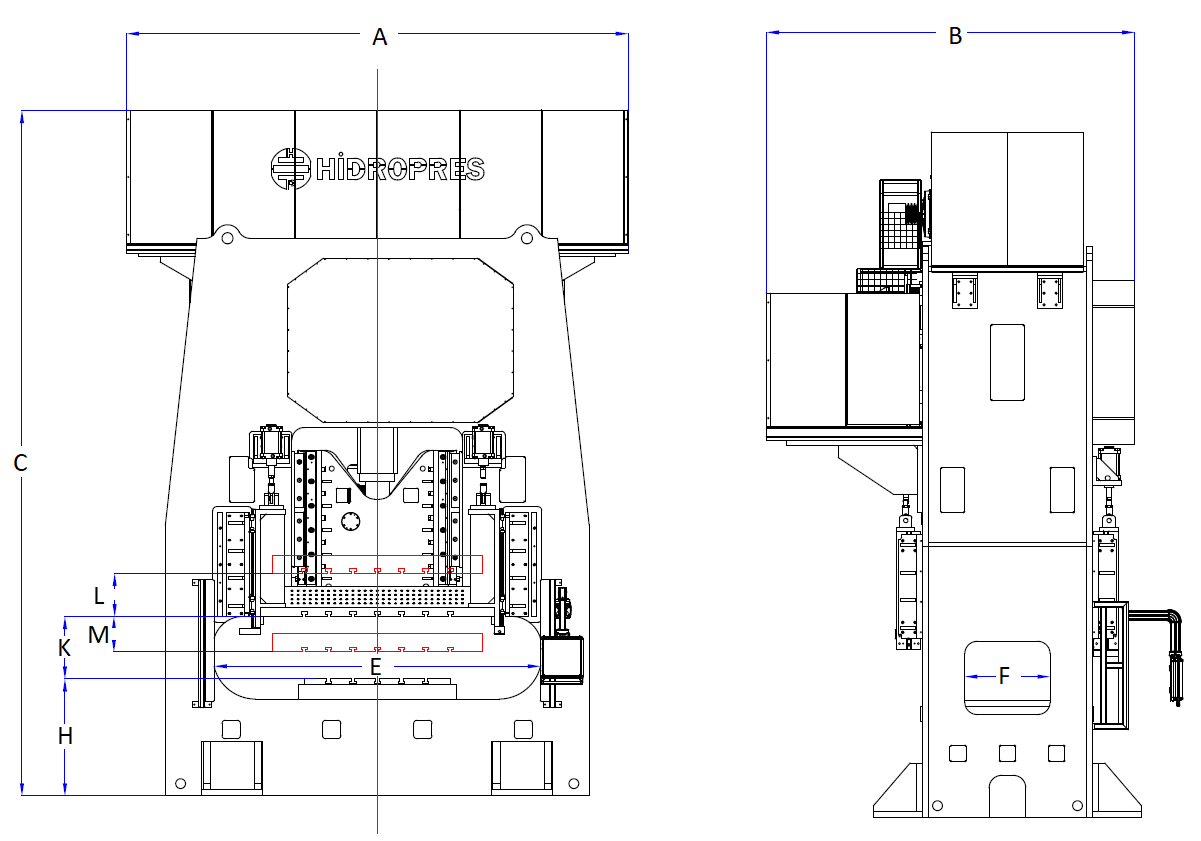

			EOM11 160	EOM11 200	EOM11 250	EOM11 315	EOM11 400
KAPASİTE - CAPACITY		kN	1600	2000	2500	3150	4000
KURS  – STROKE	L	mm	160	180	200	200	250
HIZ - SPEED		spm	30-50	35-55	30-50	30-45	25-40
İŞ MESAFESİ – TONNAGE RATING POINT		mm	6	6	7	8	8
REGLAJ MESAFESİ – SLIDE ADJUSTMENT	M	mm	100	100	150	150	200
TABLA BOYU – MAIN TABLE		mm	1200-700	1300-900	1400-1000	1600-1000	1600-1100
MOTOR GÜCÜ - MOTOR POWER		kW	15	22	30	37	55
KAPALI KALIP – DIE HEIGHT	K	mm	400	450	500	550	600
YAN ACIKLIK - WINDOW OPENING	F	mm	600	650	700	750	800
ÖN ACIKLIK – FRONT OPENING	E	mm	2200	2300	2400	2500	2600
CALIŞMA YÜKSEKLİGİ -WORKING HEIGHT	H	mm	800	800	800	800	800
EN – BODY WIDTH	A	mm	2700	2800	2900	3000	3100
BOY - BODY LENGTH	B	mm	2150	2350	2450	2550	2650
YÜKSEKLİK  – BODY HEIGHT	C	mm	3300	3700	3800	4100	4200
